As per our Shipping and Returns Policy, custom cuts and fabricated parts are non-returnable. If you need an over- or undersized item, note it under \"Comments\" during Checkout. Cut-to-size orders have an acceptable cut tolerance of 1/8" (0.125"), so clarify if the adjustment is to be made on the (+) or (-) side of the saw blade. Please review our full return and shipping policy here.

Measure Twice, Cut Once

Since custom cuts and fabricated parts are non-refundable, be very careful while measuring your dimensions. As each cut is nominal, even the slightest miscalculation could be costly.

How to Use a Measuring Tape

Extend your tape measure several inches to find the 1 and 2 inch markers. In between the inch markers you’ll find 16 equally spaced tick marks.

Measure by counting the increments beyond the nearest inch. As the increments decrease, so does the length of the mark. For example, 1/2\" has a bigger mark than 1/4\" which has a bigger mark than 1/8\". The smallest mark follows at 1/16\". Please be aware that some measuring tapes may have even smaller increments.

Features of a Measuring Tape: Sliding End Hook

The sliding end hook is designed for two different types of measurements. An outside measurement (where the hook of the tape hangs over an edge), requires the hook to slide out a bit to account for the thickness of the material. When making an inside measurement (where the hook will push up against a surface), the clip slides in, again, accounting for its thickness. The measuring tape self-adjusts to guarantee an accurate measurement (as far as the tape is concerned).

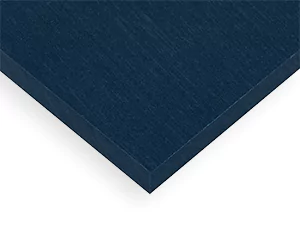

Glass Epoxy Composite Material | NorPLY 1002 Laminate

Glass Epoxy Composite Material | NorPLY 1002 Laminate

NorPLY? 1002 Is An Epoxy Composite Using Non-woven Parallel Filaments To Reduce Filament Stress & Increase Fatigue Life.

SKU: COMEM SH







ESTIMATED SHIPPING TO 06828: $28.82
* Prices are subject to change every 6 days
Login or Create an Account to Get As low as 0% for 30 days with

Description

Custom sizes are available upon request. Call (866) 522-0540 for more information.

NorPLY 1002 is a cured glass epoxy composite material designed for higher performance and longer application life. Previously known as ScotchPLY and CyPLY®, NorPLY is able to undergo many load cycles without failing and outperforms similar composite materials. NorPLY provides up to 60% part weight reduction when replacing steel components and surpasses steel for fatigue-intensive parts such as furniture springs or vibratory springs. This material offers superior energy storage capacity compared to 1060 spring steel and will not rust. It is dimensionally stable in hot, cold, wet, and dry environments and resists chemicals and corrosion.

NorPLY FP-513, 517, 518, 521, and 525 are offered in spring ply, unidirectional orientation.

NorPLY Product Information Brochure [PDF]

  • Excellent fatigue life
  • High impact strength
  • Resists chemicals, corrosion
  • Superior energy storage capacity compared to 1060 spring steel
  • Anywhere from 10% to 60% component weight reduction vs. steel
  • High strength-to-weight performance
  • Reduced downtime in harsh environments
  • Allows for increased design options, including springs and rail joints
  • High strain capability
  • Low notch sensitivity
  • Resistant to cleaning fluids

Product Reviews

Specifications

Material: PHENOLIC - GLASS
Specific Gravity (g/cc): 1.85 (cured average)
Tensile Strength: 965 MPa @ 0? stress angle
Tensile Modulus: 39.3 GPa @ 0? stress angle
Flexural Modulus: 38.6 GPa @ 0? stress angle
Flexural Strength: 1150 MPa @ 0? stress angle
Hardness: Barcol 70
Compressive Strength: 880 MPa @ 0? stress angle
Linear Expansion Coefficient: 4.8 x 10-6/?F, unidirectional parallel filaments
Dielectric Constant: 5.2 @ 23?C, 1 KC
Dissipation Factor: .006 @ 23?C, 1 KC
