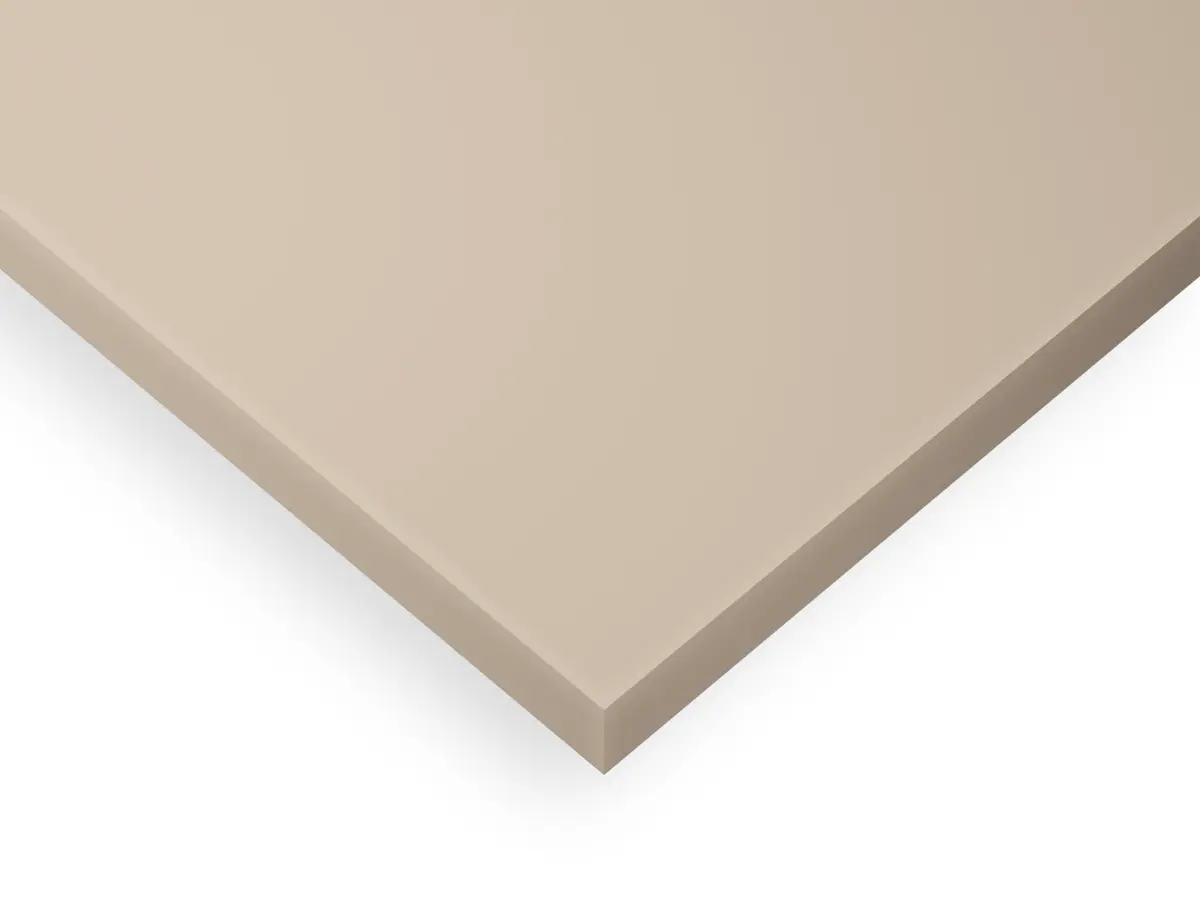

Fluorosint 500 Enhanced PTFE Plate

Fluorosint 500 Enhanced PTFE Plate

Enhanced Polytetrafluoroethylene Plate

SKU: TFEF5 SH

Price for .25" x 12" x 12" Plate Qty: 1

$287.27


ESTIMATED SHIPPING TO 43085: $29.23
* Prices are subject to change every 6 days
Login or Create an Account to Get As low as $27/month with

Description

Fluorosint® is an enhanced PTFE developed to fill the performance gaps where unfilled and low-tech, filled PTFE based polymers underperform. Its unique properties are the result of a proprietary process in which synthetically manufactured mica is chemically linked to virgin PTFE. This bonding results in properties not normally attainable in reinforced PTFE. Fluorosint® grades offer an excellent combination of low frictional properties and dimensional stability. Its coefficient of linear thermal expansion approaches the expansion rate of aluminum, and is 1/5 that of virgin PTFE -- often eliminating fit and clearance problems. It is 1/3 harder than virgin PTFE, has better wear characteristics and maintains low frictional properties. Fluorosint® 500 PTFE is also non-abrasive to most mating materials.

  • Outstanding dimensional stability - approximating aluminum
  • Chemical resistance parallels PTFE
  • Continuous use temperatures to 500°F (260°C)
  • Higher load carrying capability compared to PTFE
  • 1/9th of the deformation load vs. PTFE
  • Lower coefficient of thermal expansion when compared to PTFE

Product Reviews

Specifications

Material: PTFE - PTFE
Specific Gravity (g/cc): 2.32 g/cc
Water Absorption: 0.10% @ 24 hrs.
Friction Coefficient: 0.15
Tensile Strength: 1000 psi
Tensile Modulus: 300 ksi
Flexural Modulus: 500 ksi
Flexural Strength: 2200 psi
Elongation: 30% @ Break
Izod Impact Strength: 0.900 ft-lbs/in.
Hardness: R55
Limiting Pressure Velocity: 8000 psi-ft/min.
Heat Deflection Temp: 270°F
Melting Point: 621°F
UL94 Flammability: V-0
Dielectric Constant: 2.85
